| 性能特點 |
由開卷機、導向糾偏裝置、校平機、定尺裝置、剪板機、電氣控制柜等部分組成。
可根據用戶需要另配上料小車、過度臺、輸送出料及碼垛等選配裝置。 | |
| Features: |

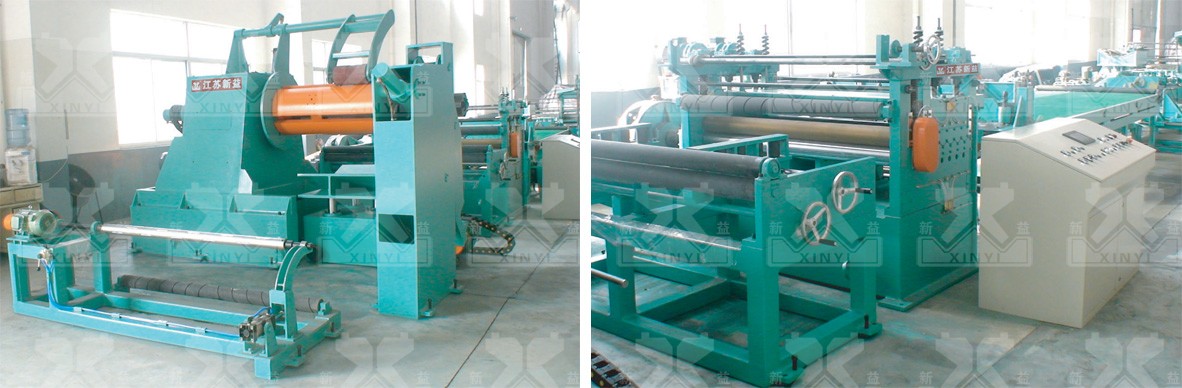

It consists of uncoiler, guide correction device, level machine, cut-to-length device, shearing machine, electrical control system etc.
Can choose optional feeding car, transition table, transport output stack device. | |
|
 |
|
| 主要技術參數 Specifications |
| 項目 Name |
單位 Unit |
可選擇范圍 Optional range |
| 加工板厚 Plate thickness |
mm |
0.3-1.5 0.4-2.0 0.5-3.0 |
| 標準板寬 Standard width |
mm |
800 1000 1250 1600 2000 |
| 開卷機承重 Uncoiled weight |
T |
5-20 |
| 校平精度 Leveling precision |
mm/m2 |
1.5 |
| 定尺精度 Cut-to-length precision |
mm/2m |
±1.0-1.5 |
| 機組最高線速度 Highest line speed |
m/min |
20-40 |
| 機組總功率 Total power |
Kw |
80-150 | | |
|
| 本表所列參數，不作為產品檢驗依據，僅供產品選型參考。如出現與產品實際數據有不一致處，應遵照說明書或雙方的技術協(xié)議約定。 |
| The data in file not as inspection evidence, just reference for model chosen. If any difference with actual data, please refer to manual or technical agreement by both parties. | |
